High voltage LED strip
Features:
1、Directly connect to AC110/220V,no need power supply.
2、IP rating 65,available for outdoor and indoor decoration use.
3、Standard length 50 meters per roll,it's cuttable and connectable at each 1 meter.
4、Any two strips can be connected by easy connector which comes with silicon circle.
5、Maintenance free,broken strips can be easily cut off and replaced.
Specification:
| Item NO. | Color | Power/meter | Voltage | IP Rate | LED Qty | Angle |
| BS-H2835-60 | WH、WW、NW、R、G、B | 4.8W/m | 110/240V AC | IP65 PVC | 60LED/s | 120° |
| BS-H5050-30 | WH、WW、NW、R、G、B | 7.2W/m | 110/240V AC | IP65 PVC | 30LED/s | 120° |
| BS-H5050-60 | WH、WW、NW、R、G、B | 14.4W/m | 110/240V AC | IP65 PVC | 60LED/s | 120° |
Compared with transitional high voltage strips, it with below new Features
1、Cutting point without empty space and conducting wires invisible.
2、It's slimmer and smarter than the transitional high voltage strips, similar to DC12/24V strip and more easier for installation.
3、Updated technology of circuit, Led strips would be still workable when any one LED die.
4、Provide two years warranty. more reliable quality.

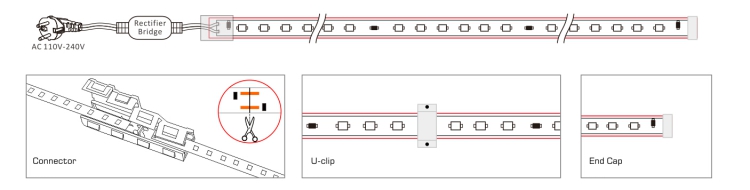

DIAGRAM:
